Platinum Lock (KASAccess) - Specifications





7

Introduction

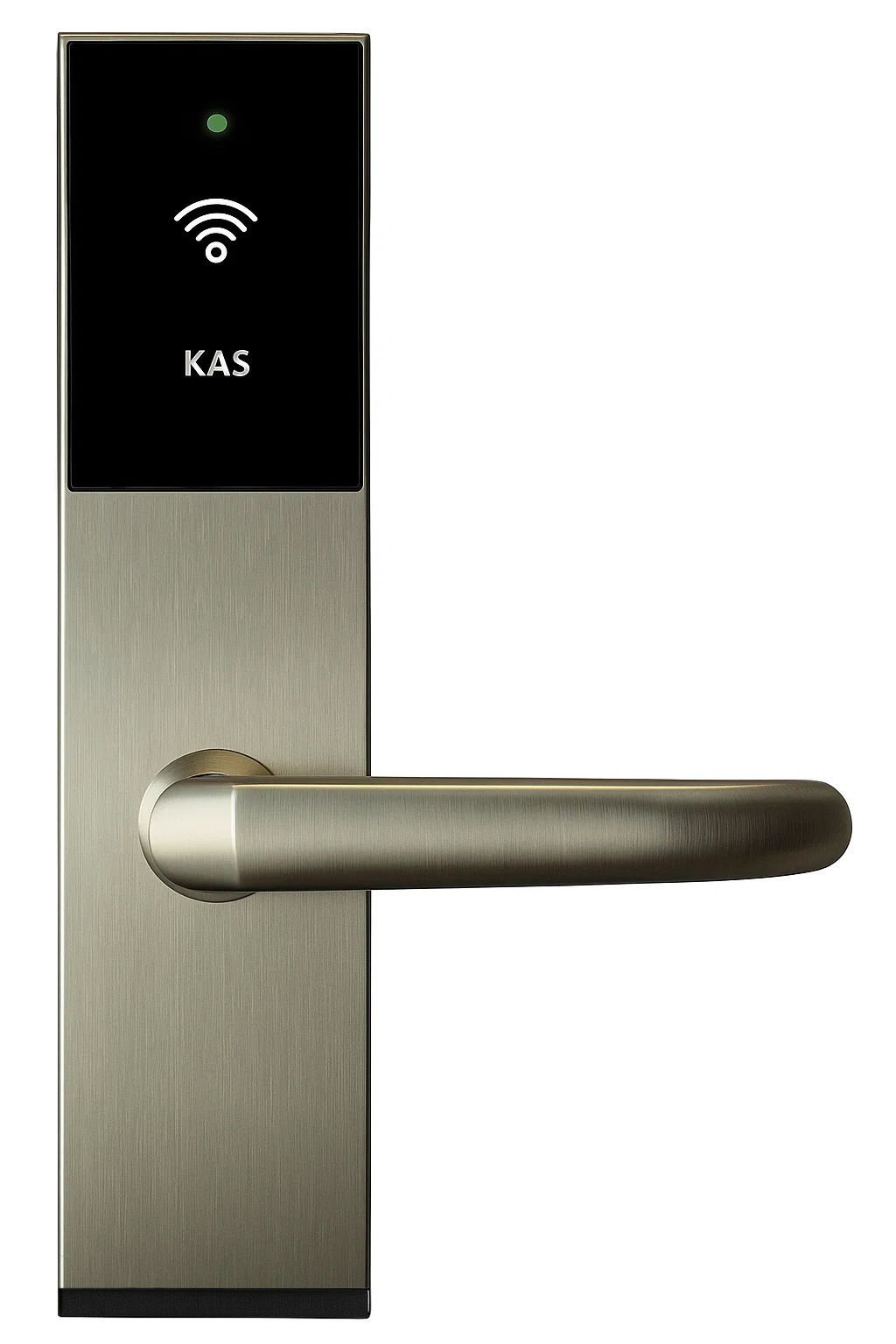

The Platinum is a modern lock that appeals to the modern environment. It is a feature rich and durable lock hardware perfectly suitable to any type of accommodation site.

It supports both the current KAS Access system and the offline-focused Lock-S system.



​

​

​

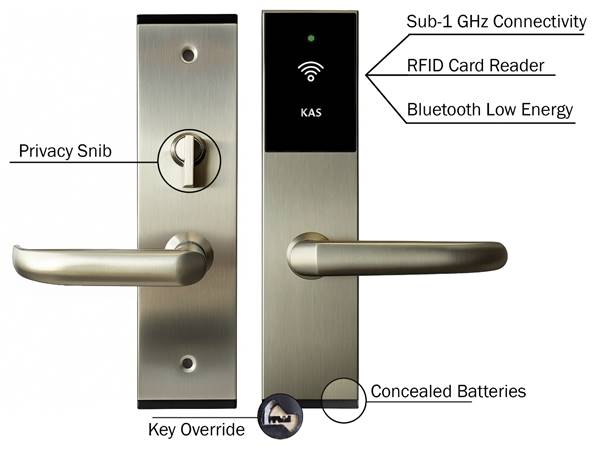

Supports the latest technologies including:

• RFID technology
• Bluetooth Access
• Sub-1 GHz wireless connectivity











Technical Specification

Door thickness	34 – 55 mm thickness
RFID Specifications	13.56MHz Technology ISO 14443A (MIFARE)
Wireless Technologies	Bluetooth Low Energy (BLE) Smart 4.0, Sub-1 915MHz Wireless Connectivity
Card Limit	300
Working Voltage	DC 4.5V, (3 x AA alkaline batteries)
Limited Voltage	DC 3.0V
Working Temp	-20 to 60 Degrees Celsius
Working Humidity	20% - 90%
Emergency Power Supply	Not applicable (Battery Case accessible from the outside)
Card Read Time	<0.8s
Warnings	Low battery warning function
User interface	2 coloured LED display (green, red) with buzzer
Keypad Display	N/A
Battery location	Outside of the room
Privacy snib	Not Applicable for KAS Access
Material	Body: 304 Stainless Steel, Reader: High quality plastic
Handle direction	Not reversible – Left handle and Right handle selection required
Mechanical key override	2 x unique mechanical keys (supplied per lock)
Certifications	Fire rated to AS standards (up to 2 hours)



Dimensions

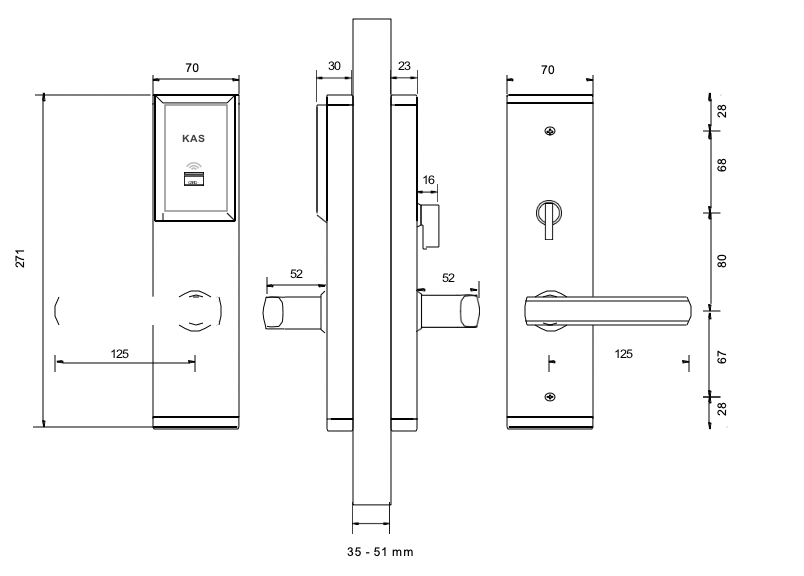

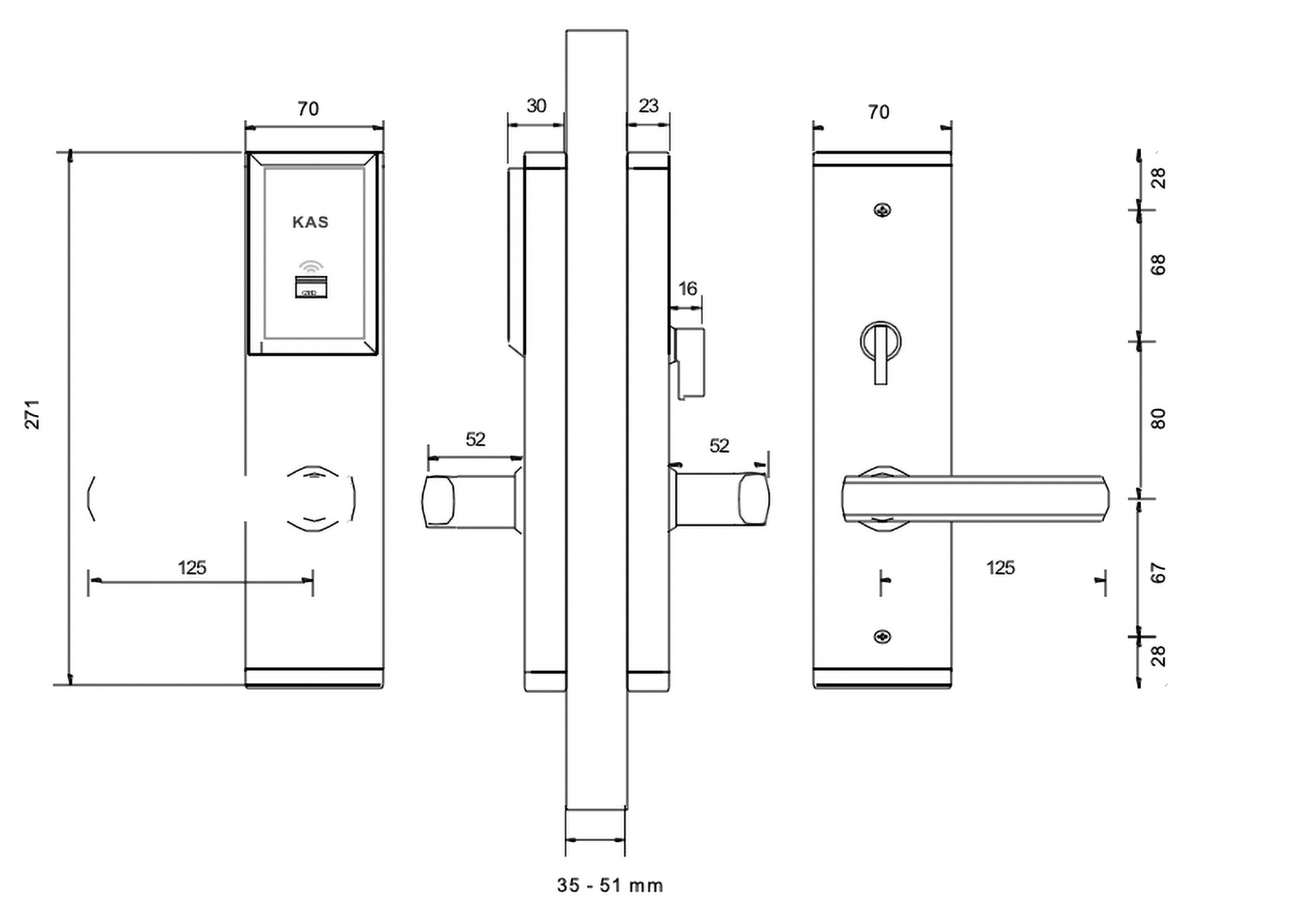

Lock Dimensions

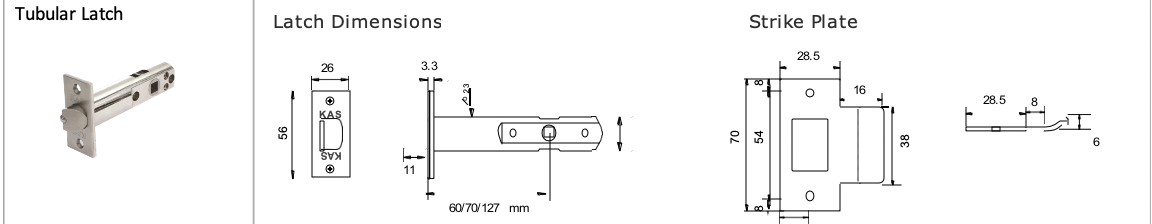

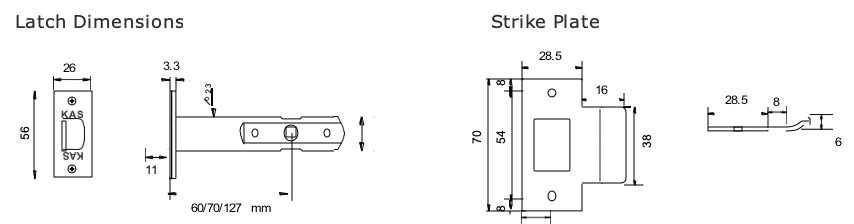

Tubular Latch Dimensions

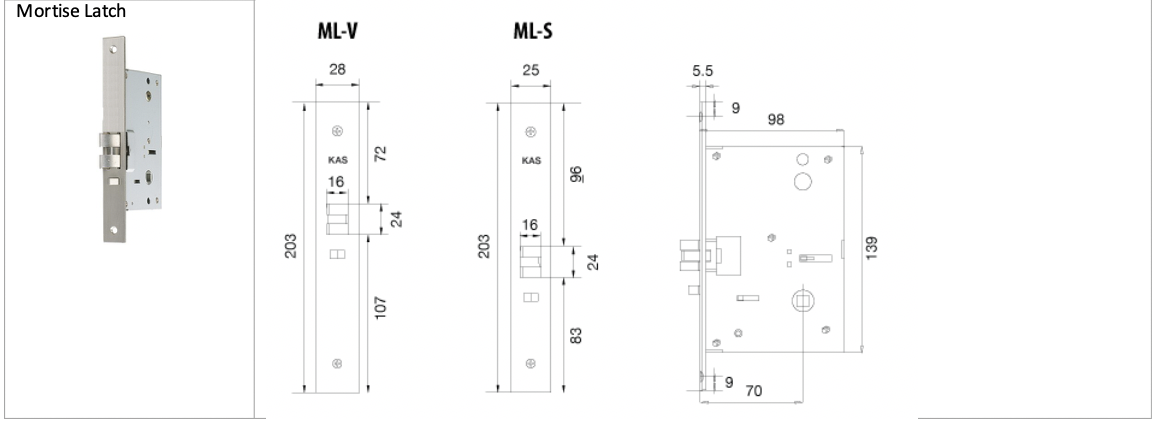

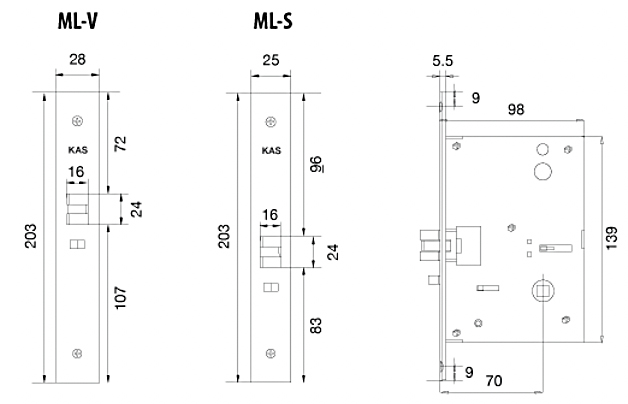

Mortice Latch Dimensions

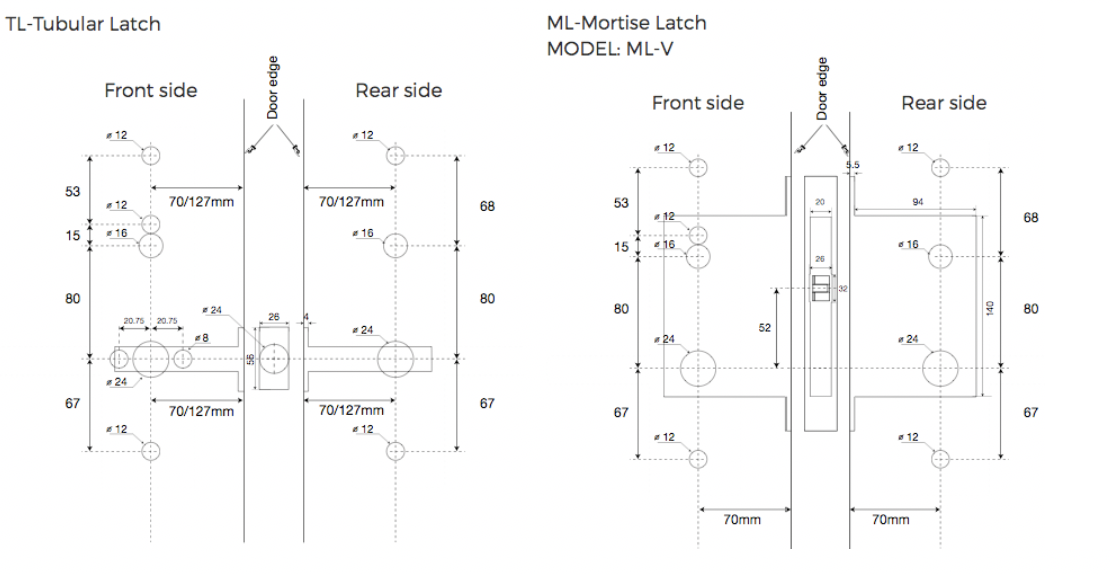

Drilling Diagram

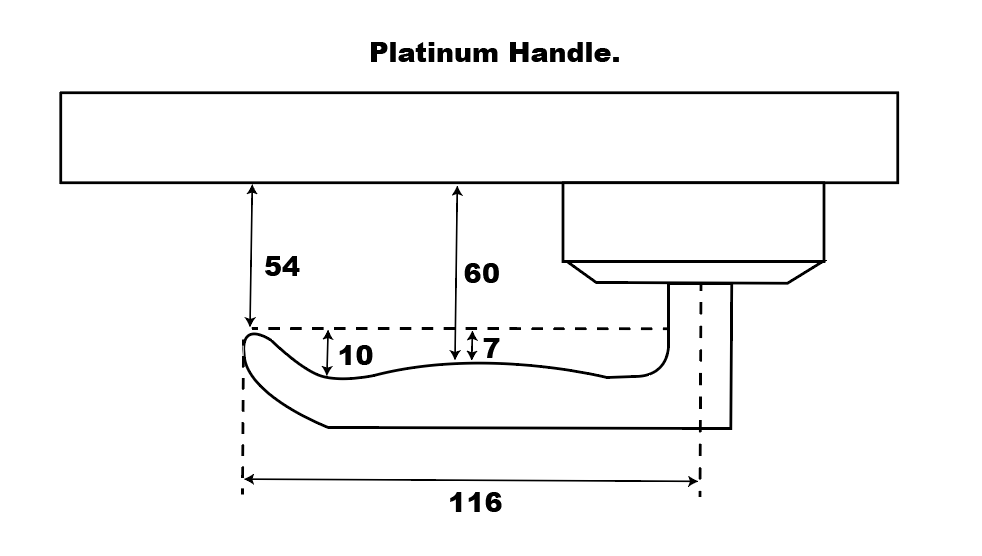

Handle Dimensions



Mechanical Key

The Platinum Lock has a concealed mechanical key barrel for emergency override. In the case of electronic malfunction, the mechanical keys can open the door. 2 mechanical keys are provided per lock.



Maintenance

-         Please ensure that the latch is lubricated using a PTFE-based dry lubricant and check its operability every 6 months, and re-apply lubrication as required.

-         After installing the Tubular Latch, ensure any debris or dirt are cleaned out. Failure to do so may damage the latch and affect your warranty

Download as PDF
