Lock-S Platinum Lock - Datasheet

Lock-S Platinum Lock - Datasheet





Introduction

The Platinum is a modern lock that appeals to the modern environment. It is a feature rich and durable lock hardware perfectly suitable to any type of accommodation site.

Supports the latest technologies including:
  1. RFID technology
  2. BLE
  3. Sub-1 GHz wireless connectivity

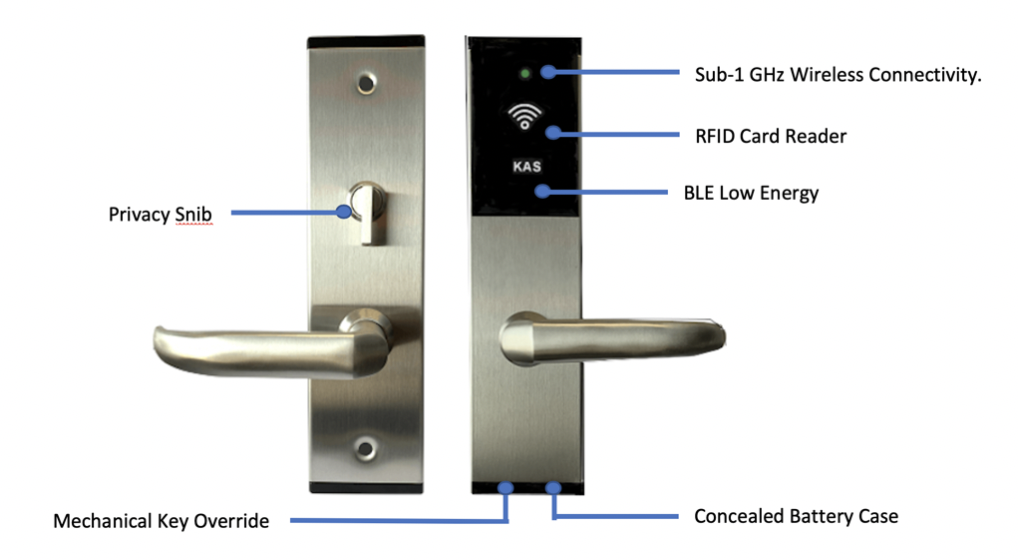

Images


 Technical Specification

Door thickness

34 – 55 mm thickness

RFID Specifications

13.56MHz Technology ISO 14443A (MIFARE)

Wireless Technologies

Bluetooth Low Energy (BLE) Smart 4.0, Sub-1 915MHz Wireless Connectivity

Working Voltage

DC 4.5V, (3 x AA alkaline batteries)

Limited Voltage

DC 3.0V

Working Temp

-20 to 60 Degrees Celsius

Working Humidity

20% - 90%

Emergency Power Supply

Not applicable (Battery Case accessible from the outside)

Card Read Time

<0.8s

Warnings

Low battery warning function

User interface

2 coloured LED display (green, red) with buzzer

Keypad Display

N/A

Battery location

Outside of the room

Privacy snib

90 degree rotation

Material

Body: 304 Stainless steel, Reader: High quality plastic

Weather resistant

Rubber gaskets for water tight protection (IP Rating in progress)

Handle direction

Not reversible – Left handle and Right handle selection required

Mechanical key override

2 x unique mechanical keys (supplied per lock)

Certifications

Fire rated to AS standards (up to 2-4 hours)

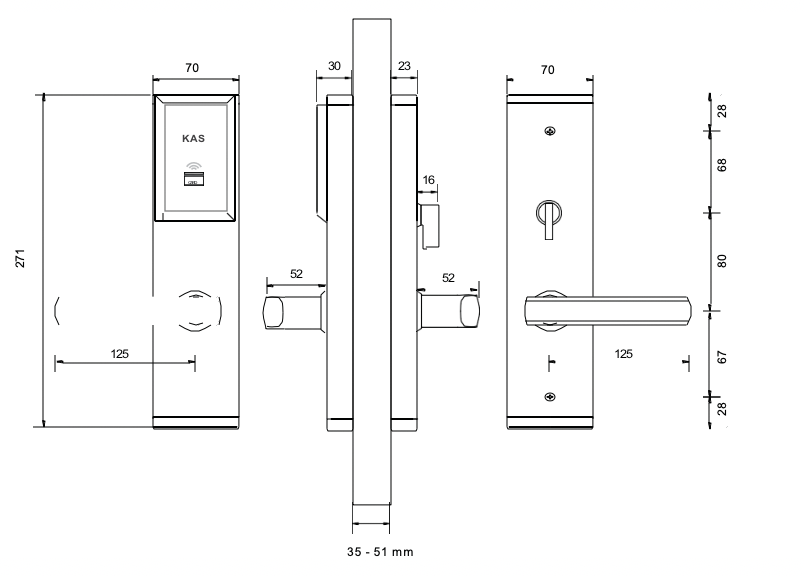

Dimensions

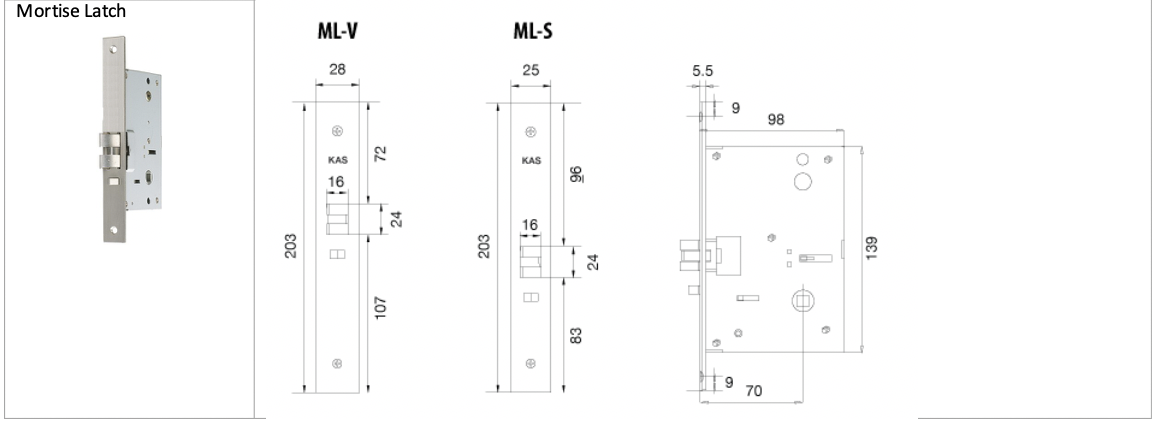

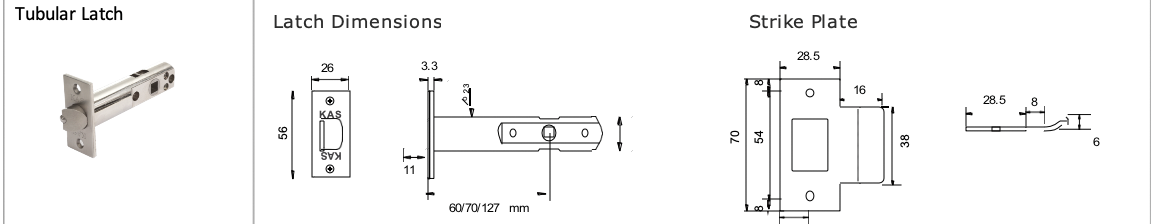

Latch Specification

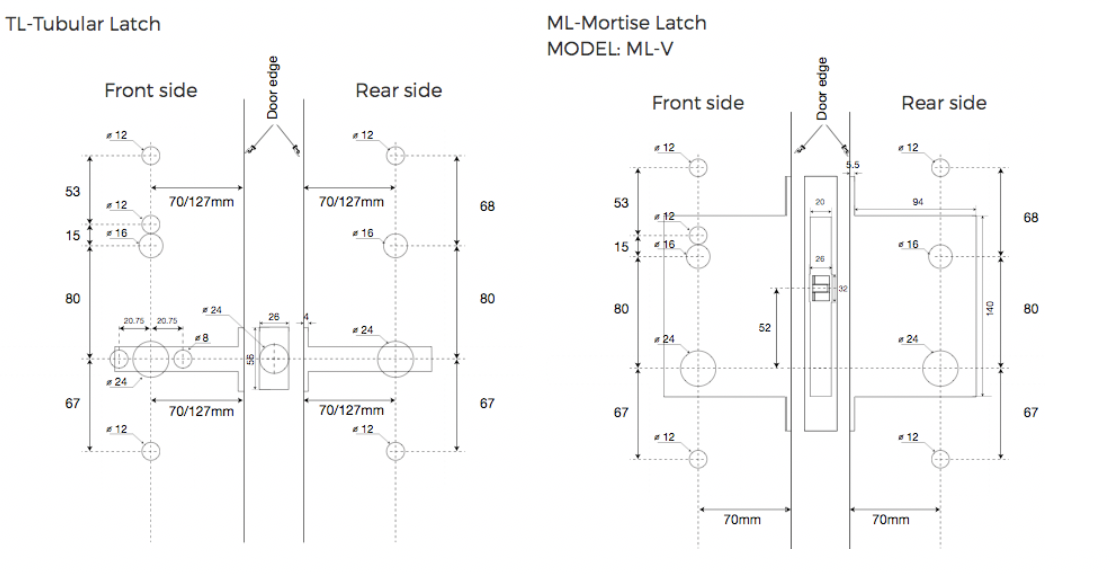

 Drilling Diagram

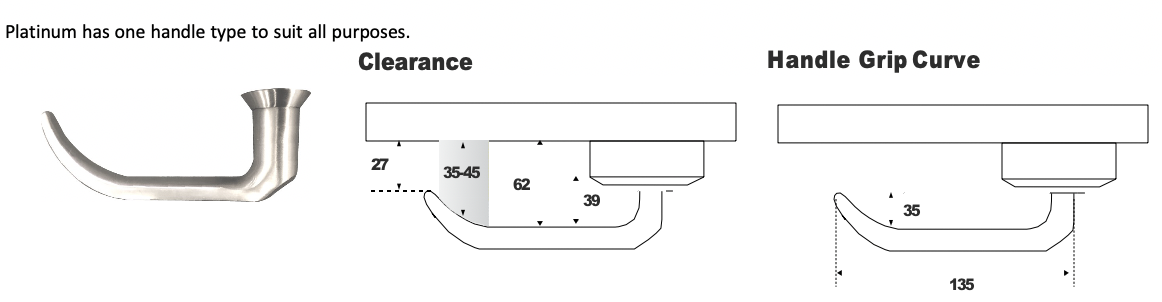

Handle Dimensions




 Mechanical Key


 Platinum lock has a concealed mechanical key barrel for emergency override. In the case of electronic malfunction the mechanical keys
can open the door. 2 X mechanical keys are provided per lock.
