(PDA) MANUAL


The following pictures are the basic configurations of our handset:
Data line------------------------------------------------1 piece
Touch pen----------------------------------------------1 piece
Handset-------------------------------------------------1 set

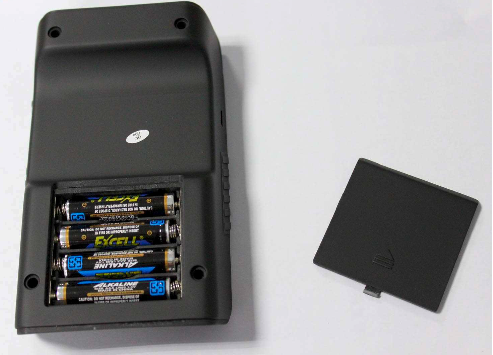

The handset is powered by 4 pieces of 1.2V high alkaline batteries.


Download Room Data

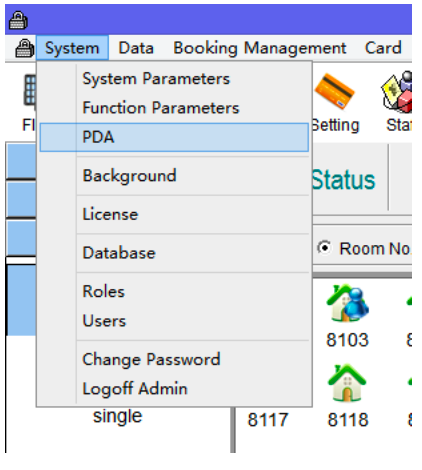

1. After the software is installed set the floor and room type. And issue the guest card. Then connect the PDA to the computer, entering into the lock software, choose “system”> “PDA”

You will get to the PDA setting Screen.

2. Click “Init PDA”. It will show “Init PDA successfully”

3. Click “download data”. It will show “download data successfully”

4. Click “clock”. It will show “setting PDA clock successfully”


After setting PDA data on the software, use PDA to set lock data:

Program Locks

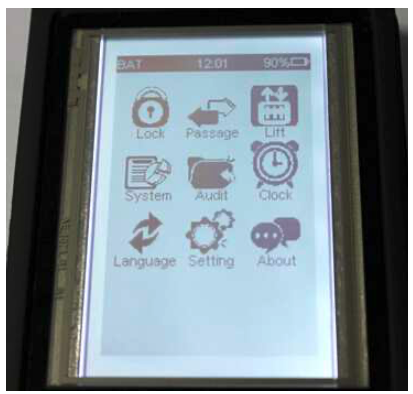

5. Choose “lock” on the PDA as shown in the picture:

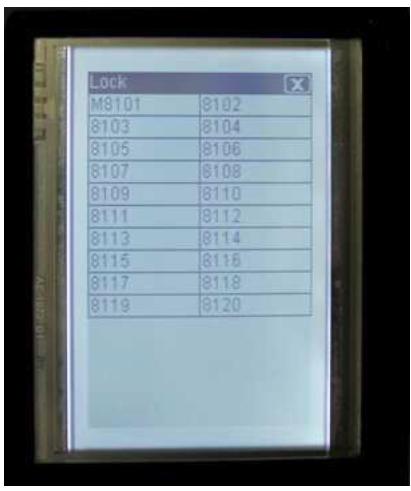

It will transfer to the floor menu as shown in the picture:

6. Choose the room number that you want to set and put the PDA close to the lock. It will show the following pictures:
“System (8104) click ok after setting”

Click “ok” there will be blue light flashing and one beep sound. And it will automatically transfer to “parameter (8104) click ok after setting”.

Click “ok” there will be blue light flashing and one beep sound. These two steps are setting system and parameter for the PDA.
After setting the above data the guest card/master card/floor card, etc. can open the lock now.

Lock Entry Records

Audit read the opening record through PDA choose the” Audit” option on the menu.

And it will transfer to the following screen as shown in the picture.
Choose “Read Record” and then put the PDA close to the lock.


Click “first query”, it will transfer to the following as shown in the picture. There will be blue light flashing and one beep sound. Then press” Query” and “OK”.

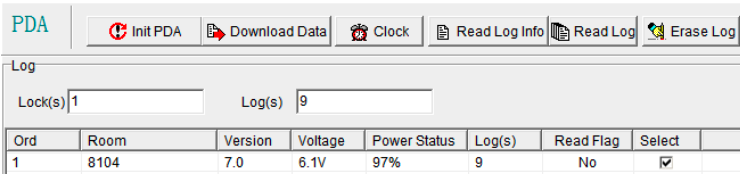

Connect the PDA to the computer and choose “Read Log” It will get to the following screen as shown in the picture;
Click Select on the room number that you want to read.
You will get into the menu: Report. Chose Audit Trail

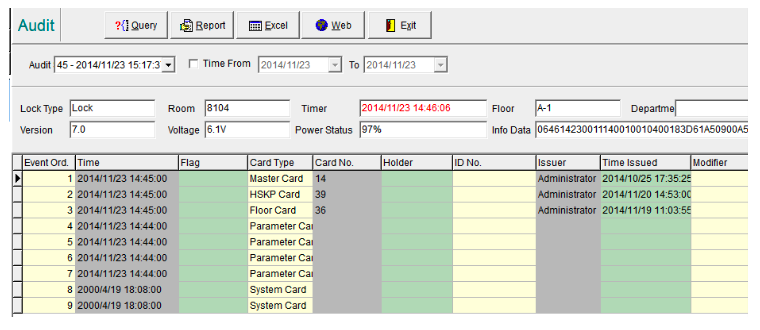

Click press “query” it will transfer to the following as shown in the picture:
