Introduction

The Neo is a modern lock that appeals to the modern environment. It is a feature rich and durable lock hardware perfectly suitable to any type of accommodation site.

Supports the latest technologies including:
  1. RFID technology
  2. Mobile Access
  3. Password entry

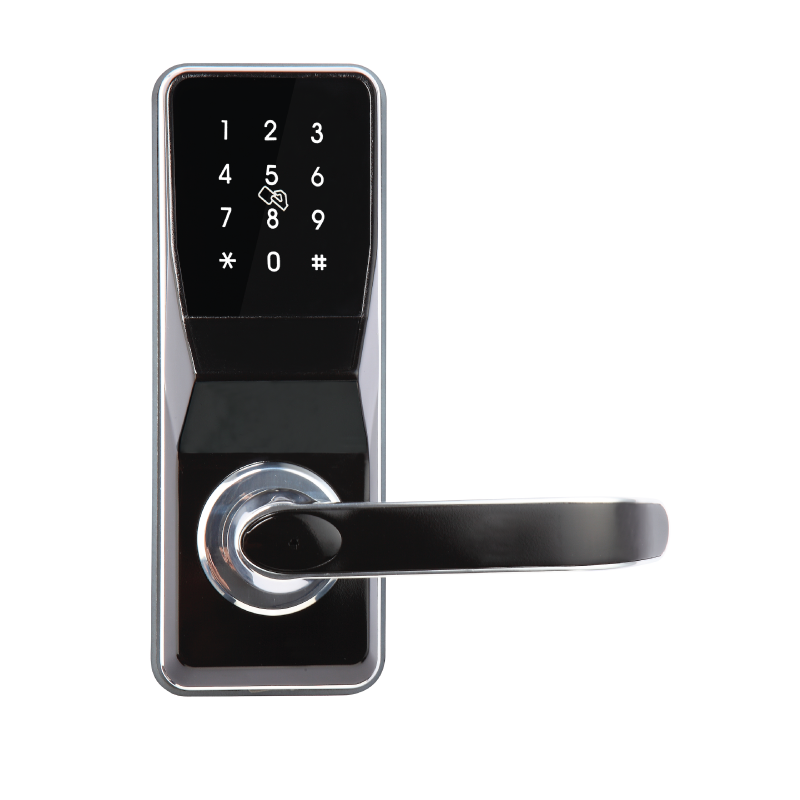

Front and Back Figure 01



Specifications

Technical Specifications


Door Thickness


34 – 60 mm thickness

RFID Specifications

13.56MHz Technology ISO 14443A (MIFARE)

Mobile Access

Bluetooth Low Energy (BLE) Smart 4.0

Working Voltage

DC 6.0V, (4 x AA alkaline batteries)

Limited Voltage

DC 4.3V – With Low Battery Warning

Battery Lifetime

8 - 10 months OR 3000 unlocking attempts

Working Temp

-20 to 60 Degrees Celsius

Working Humidity

20% - 90%

Emergency Power Supply

Micro USB power bank

Card Read Time

<0.8s

Warnings

Low battery warning function

User interface

2 coloured LED display (GREEN, RED) with buzzer

Keypad Display

12 digital numbers with white LED background

Adjustable volume

N/A

Adjust keypad LED intensity

N/A

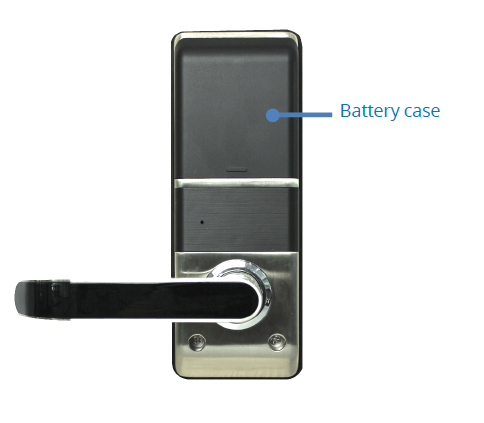

Battery location

Inside of the room

Privacy snib

N/A

Material

Primary: PCV0, Secondary: Stainless steel finish

Weather resistant

Rubber gaskets for water tight protection

Handle Orientation

Onsite reversible

Mechanical key override

2 x unique mechanical keys (supplied per lock)

Certifications

Fire rated to AS standards (up to 2 hours)

Door thickness

35-60mm (all parts supplied with every lock)




Application Specifications

Neo Gen 2 supports two modes: Self-Manage Mode and Hotel Mode
Neo Gen 1 supports each mode individually: Modes are shipped with each order.



Self-Managed Mode

Hotel Mode

Local Pin Code Memory

100

N/A

Local RFID Memory

100

N/A – Unlimited generated from PC

Auto-Generated Pin Code

By App

By PC Software

Auto-Generated Pin Code Memory

Unlimited

1 at a time per lock

Auto-Generated Pin Code Length

8

10

Local Audit Trial

No

Yes – 820 unlocking records per lock

Online Audit Trial (Gateway required)

Yes

Yes

Free Passage Option

Yes – by keypad setting

Yes – by card setting

Free Passage by Gateway

No

No

Connectivity – Short Range

BLE Smart 4.0

BLE Smart 4.0

Connectivity – Long Range

SUB-1 GHz

SUB-1 GHz

Online Control

Gateway required

Gateway required

Standard Warranty

12 Months

24 Months


Certifications

Fire rated to AS standards (up to 2 hours)

Dimensions

Lock Dimensions

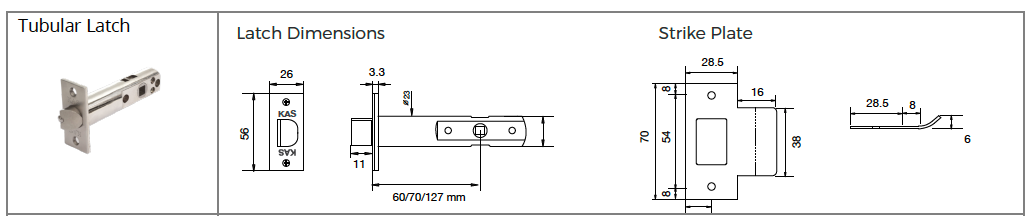

Latch Dimensions




Mortise Latch N/A

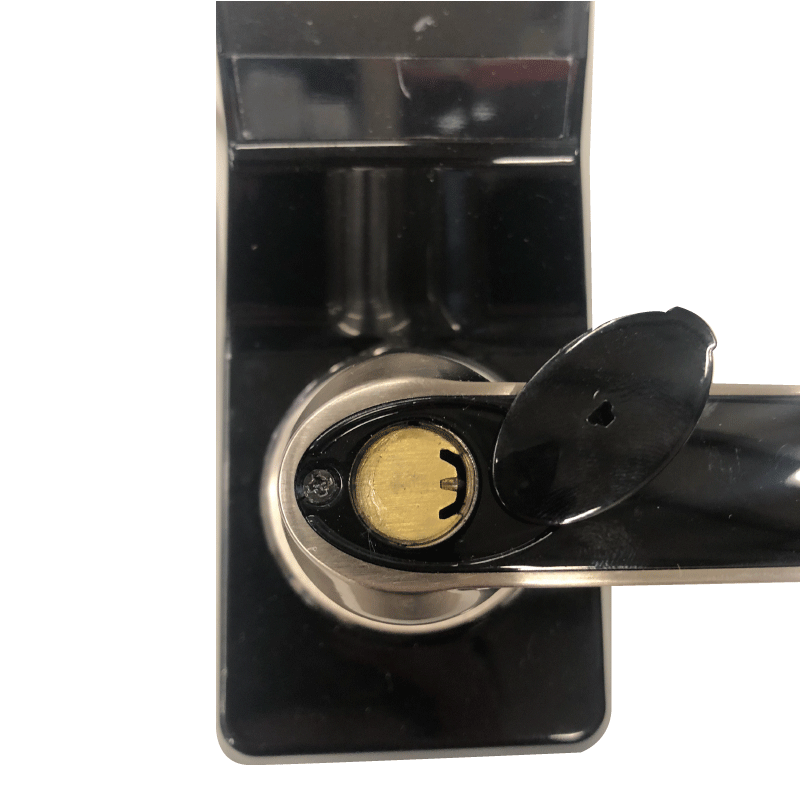

Mechanical Key Location


Neo Lock has a concealed mechanical key barrel for emergency override. In the case of electronics malfunction the mechanical keys can open the door.

2 x mechanical keys per lock
