Install SQL Server for Lock-S

Install SQL Server for Lock-S


The first step when installing Lock-S software is to install the server. Follow the steps below. If you get stuck, free support is available during Business Hours

Step # 1 Download SQL

  1. Click on the URL to Download the SQL setup file.  SQL Server 2012
  2. Select Language and Click Download. You will be prompted to select the file now.

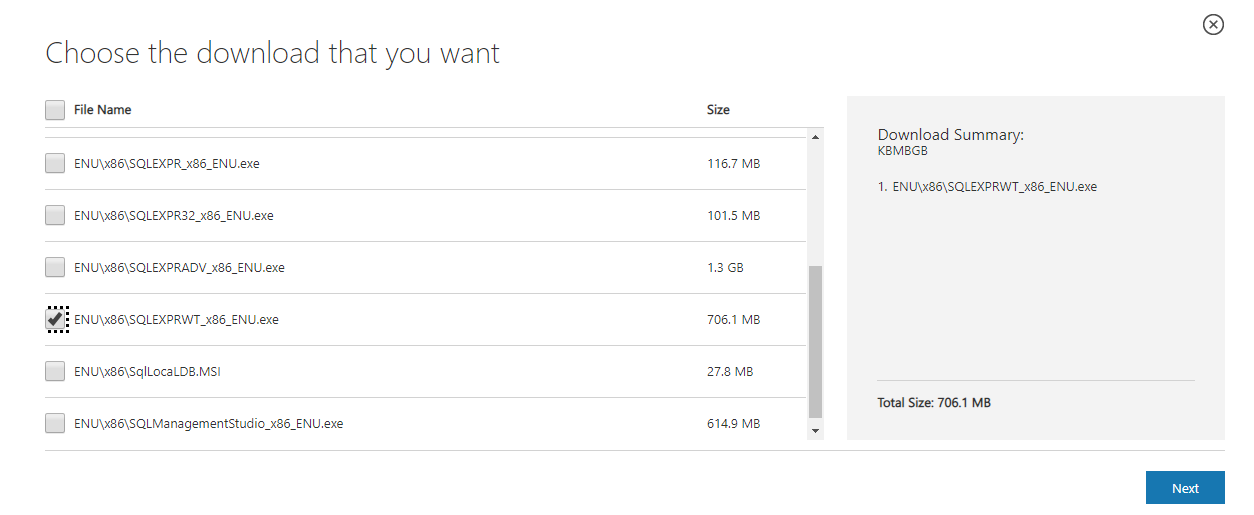

Step #2 Select the file to download

Most computers these days have an x86 processors, however, some may have be x64. If you know the process select accordingly.
If you don't know the processor try selecting 86 first. If this is incorrect it will notify you. then you can choose x64
  1. For x86 Select:  ENU\x86\SQLEXPRWT_x86_ENU.ex click Next. The download should start automatically. For x64 processor:
  2. For x64 Select: ENU\x64\SQLEXPRWT_x64_ENU.exe and click Next. The download should start automatically. For x64 processor:

Step # 4 Install SQL

1. After the file has downloaded. Open the folder where you download the file and double click on it to start installing the SQL.

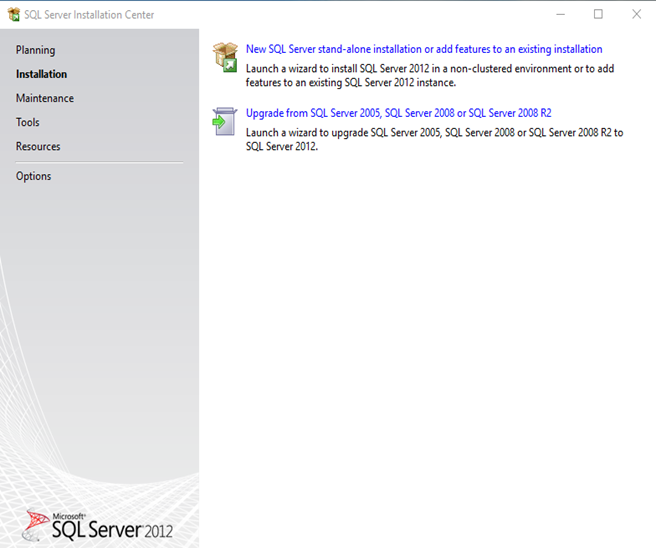

2. Click on:  New SQL Server stand-alone installation.




After clicking next, SQL will automatically check for updates. After finish updating click next

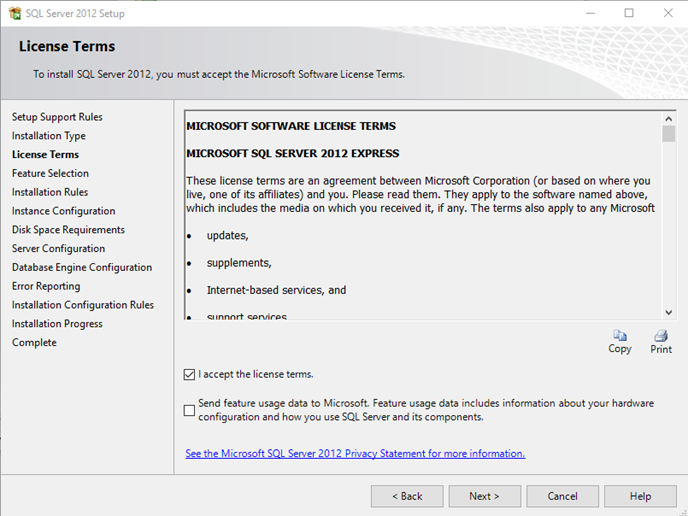

Step # 6 Accept Licence Terms


Click on the box to accept the license term and press next again.

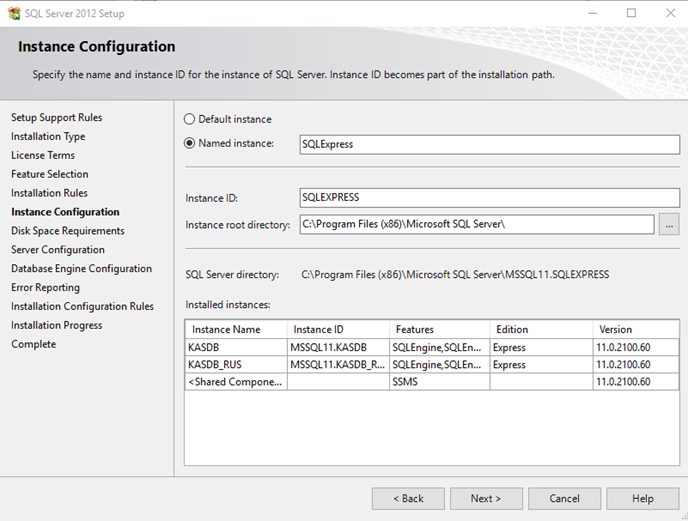

Step # 7 Instance Configration

Now Keep clicking next until you see the following Screen.

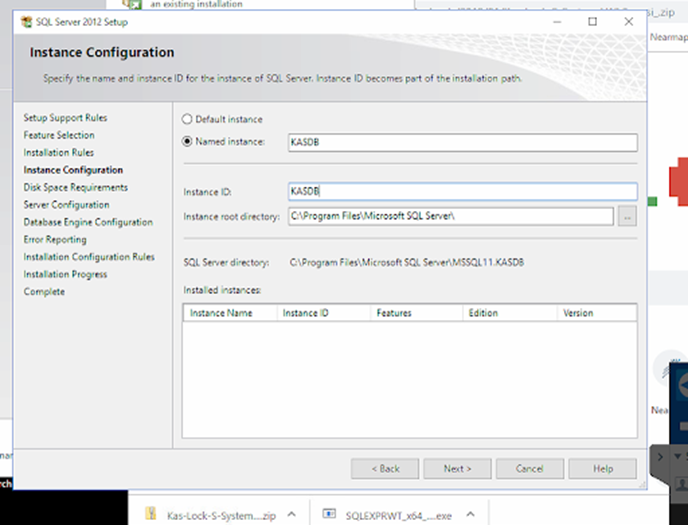

Step # 8 Name the Instance


  1. Change Instance Name: KASDB
  2. Instance I.D: KASDB
  3. Keep clicking next until you reach Database Engine Configuration

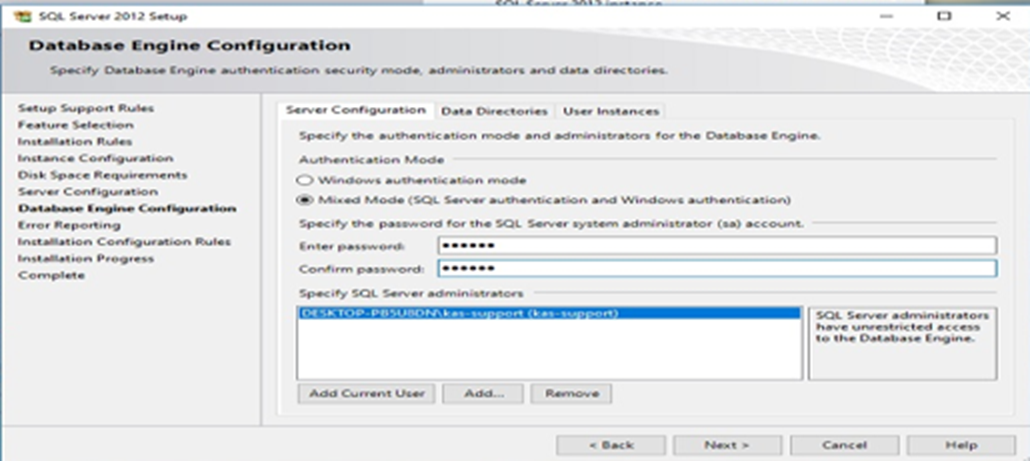

Step # 9 Database Engine Configuration

Server Configuration
  1. Authentication Mode: Mixed Mode
  2. Password: kas123
  3. Keep clicking next until you reach the Complete page.

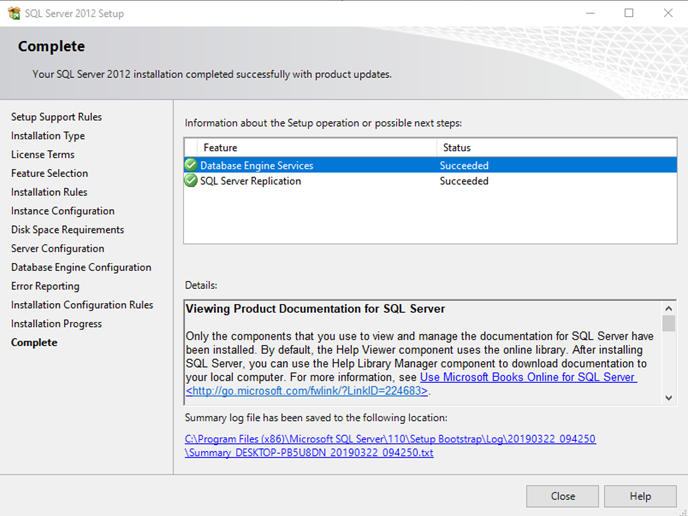

Step # 10 Install Complete
