LMS Access Control System - Installation Guide

To setup and program the access control reader

​

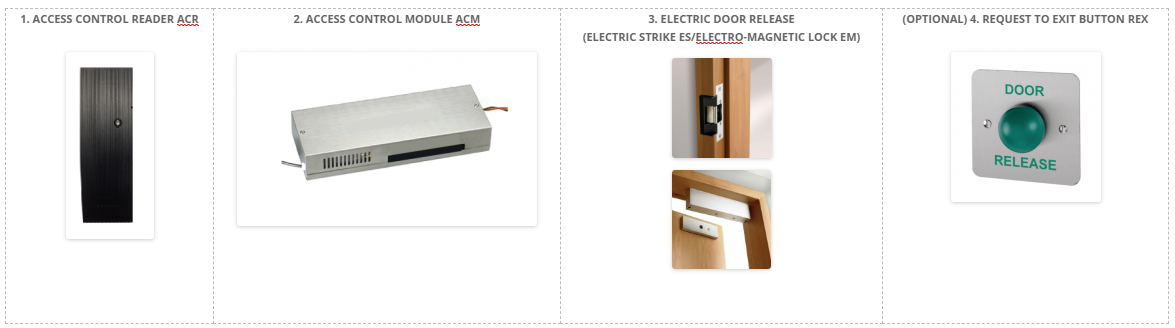

There are 2 main components of the Access Control System (ACS) which you some become familiar with.  There are also additional optional devices that comprise the ACS, a door release and the REX button.  You can install a regular handle lock set if you wish to exclude the REX button. (i.e. Entry is granted by ACR as the handle is locked from the outside, Exit is granted by the free passage handle from the inside.)

All these components make up the Access Control System (ACS)

Step # 1 :

Install all components of the access control system. Any regular handle is suitable as long as the latch fits inside the electric strike, or glass door handles if electromagnetic lock is used. If the client elects to not have a REX button, the inside door handle can be left in free passage for egress.

KAS can supply electric door release relay and REX button.  KAS do not supply the regular handle lock sets for the door.

The wiring diagram is attached

Step # 2 :

Wiring and Installation:

Access Control Reader: 2 x 12 VDC cable from wall reader to Access Control Module.

Access Control Module: 1 x 240 VAC inside the door in a secure, out-of-reach location.
REX button: 2 x figure 8 cable running to Access Control Module.
ES Electric: same position as regular strike plate, same height as lock set with 12 V DC running to Access Control Module.
EM Electromagnetic lock: on top of door frame with appropriate inwards/outwards swing – 12 V Figure 8 cable running to Access Control Module.

Installation must be conducted by a qualified electrician as the system is powered by 240 VAC.

Step # 3 :

Take Mobile Programmer and download software data before setting room number on the lock.

1. Plug programmer into USB-port

2. Open KAS-LMS Software

3. Click “Download Data”

4. Wait for confirmation message


Step # 4 :

Now you can program the locks with the mobile programmer.  Take the mobile programmer and do the following:

1. Press 3,

2. Press Run,

3. Hold onto induction area until 5 fast beeps are heard – You do not have to remove the black cover

4. Wait for signal onto the programmer

5. Press the button on the PCB inside the Access Control Module – WARNING 240 VAC

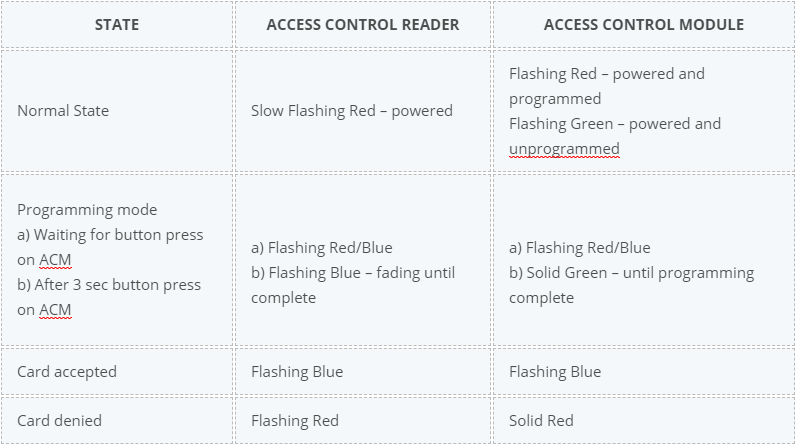

6. Flashing Green LED on ACM for confirmation (Flashing RED identifies it is already programmed)


Step # 5 :

Set the clock:

1. Press 1

2. Press Run

3. Hold onto induction area until 5 fast beeps are heard – You do not have to remove the black cover

4. One long beep to confirm and message on the Mobile Programmer to confirm


Step # 6 :

Access Control System setup complete.

Things to check:

1. Blue light is displayed when the relay is triggered correctly and the electric strike/electromagnetic lock or any other dry contact relay is functioning correctly.

2. Test with master key card for correct programming

3. If the clock is not set, the guest room key cards will not work (as they are limited by time)

4. You can also change the relay timestamp setting by the dip sheets. Consult Manual  here.
