How to confirm the handle orientation

Lock Handle Orientation

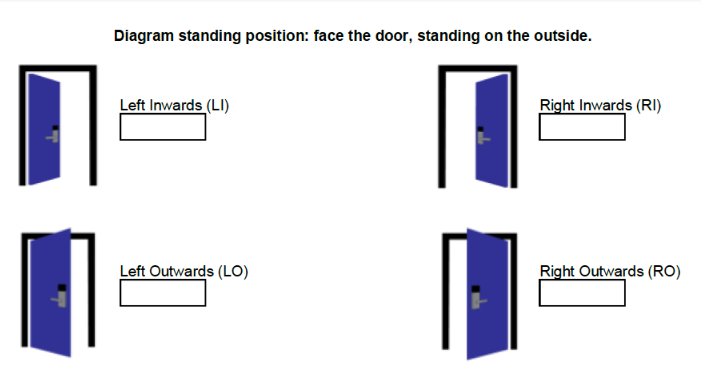

For some Locks the orientation is required.  Please use this diagram to confirm your requirements
