ETouch Lock - How to change the Motor

ETouch Lock - How to change the Motor

Know your Handle orientation

Refer to the picture below and see if you have a left handle lock or a right handle lock

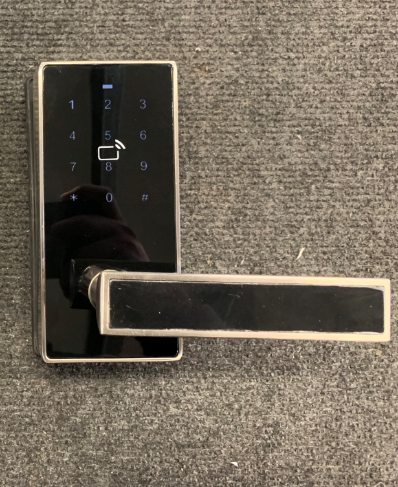

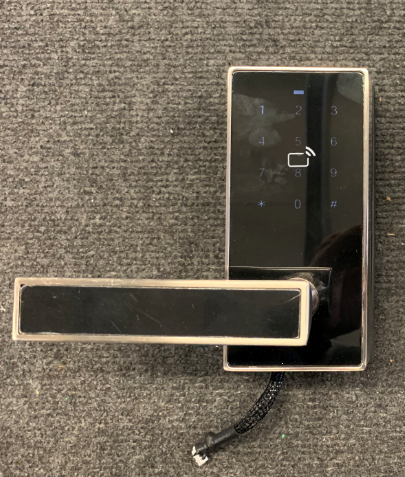

                 LEFT                                          RIGHT

Unscrewing

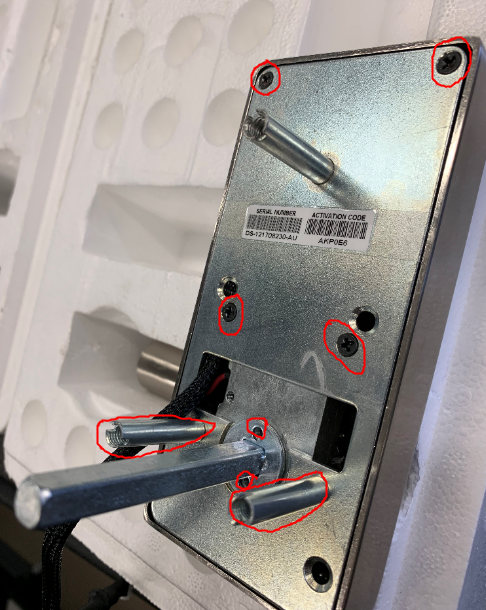

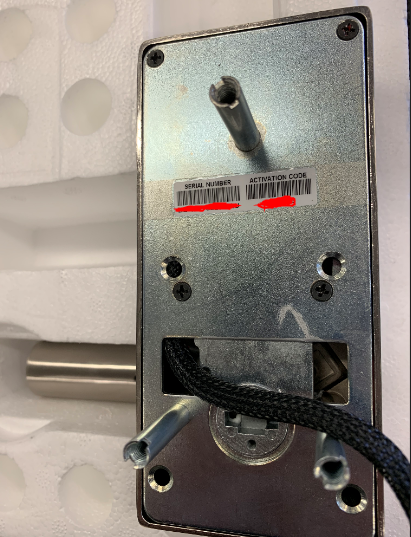

unscrew the screws marked on the picture below.



Unplug the Motor

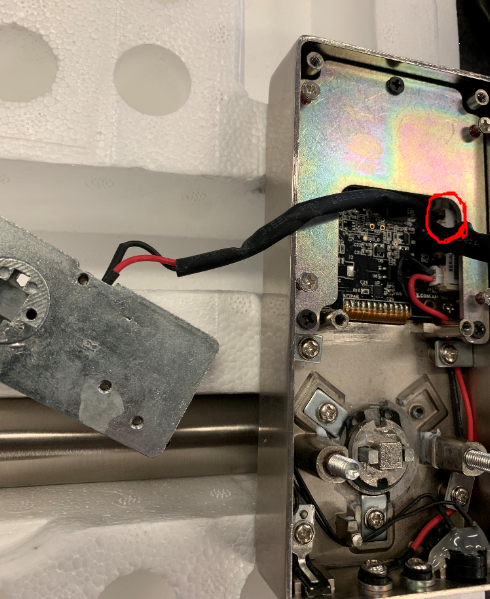

Gently unplug the motor from the main PCB



Plug back the new Motor

Plug back the new motor into the same slot where you remove the old motor from.

RIght or Left Motor

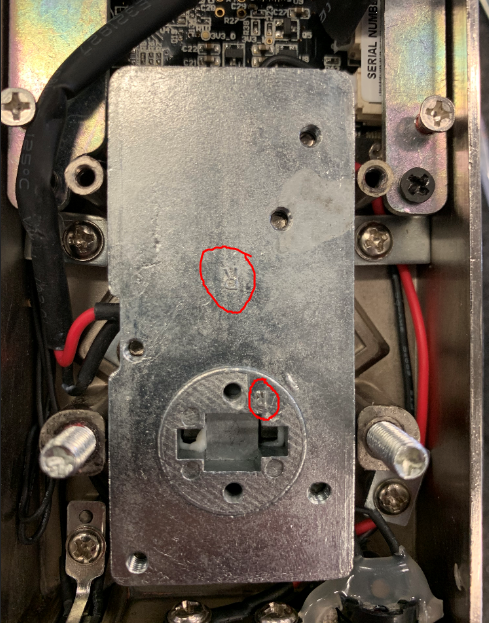

Similar to the handle orientation motor has 2 sides left and right. Put the motor back facing the R or L symbol if you have a right or left handle respectively ( See picture below)



          LEFT HANDLE                                RIGHT HANDLE


Screw back the back plate

Screw back all the screws to the back plate
