Z-Wave Lock - How to change a Motor

Step # 1:

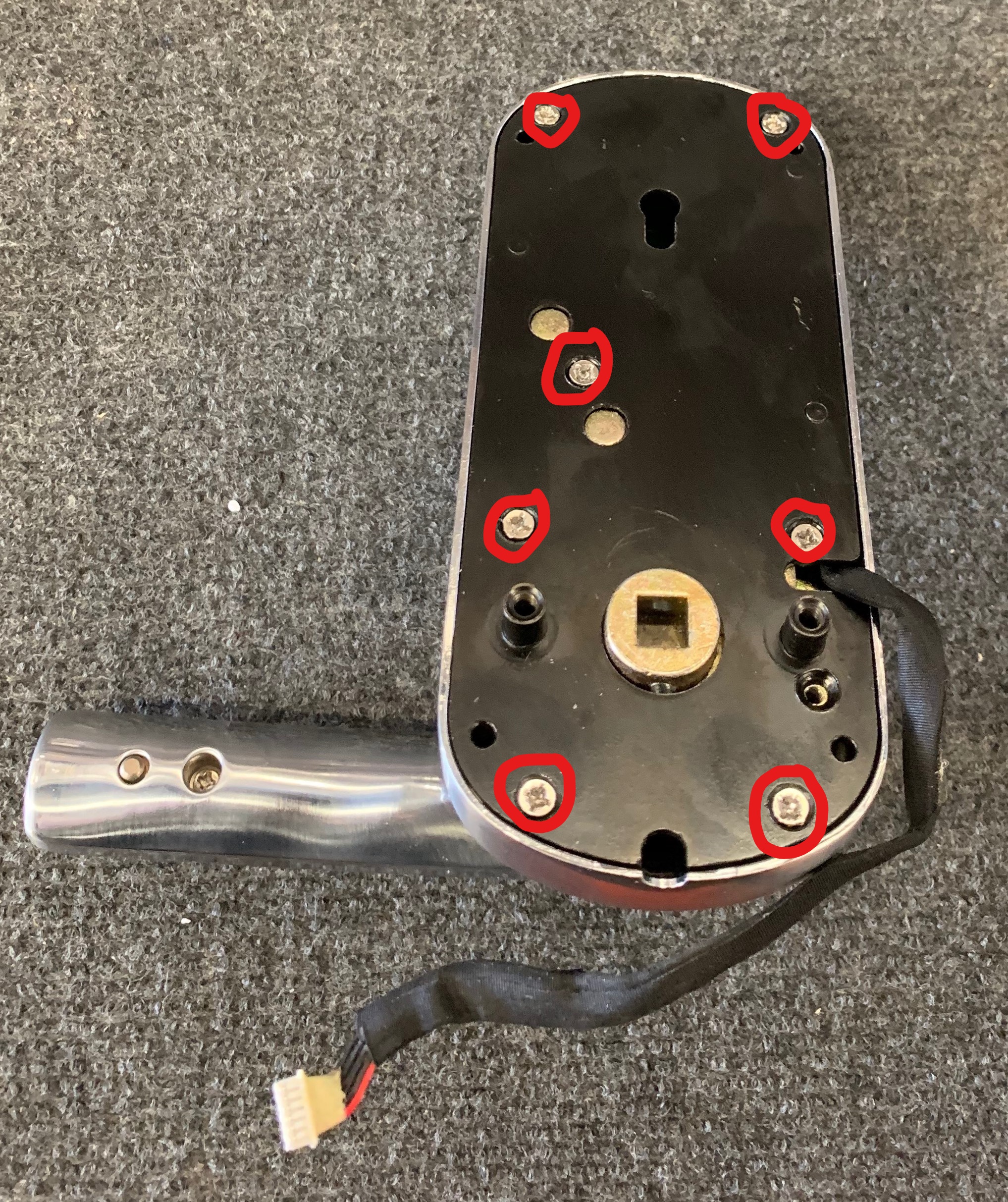

unscrew all the screws as shown

Step # 2:

Take the old motor off as shown

Step # 3:

Plug in the new motor as shown

Step # 4:

Finally put all the screws back and tighten them.
