ACR Wiring Guides

ACR Wiring Guides

Premise

This guide will provide the wiring diagrams for the ACR in various usage scenarios.

Wiring and Examples

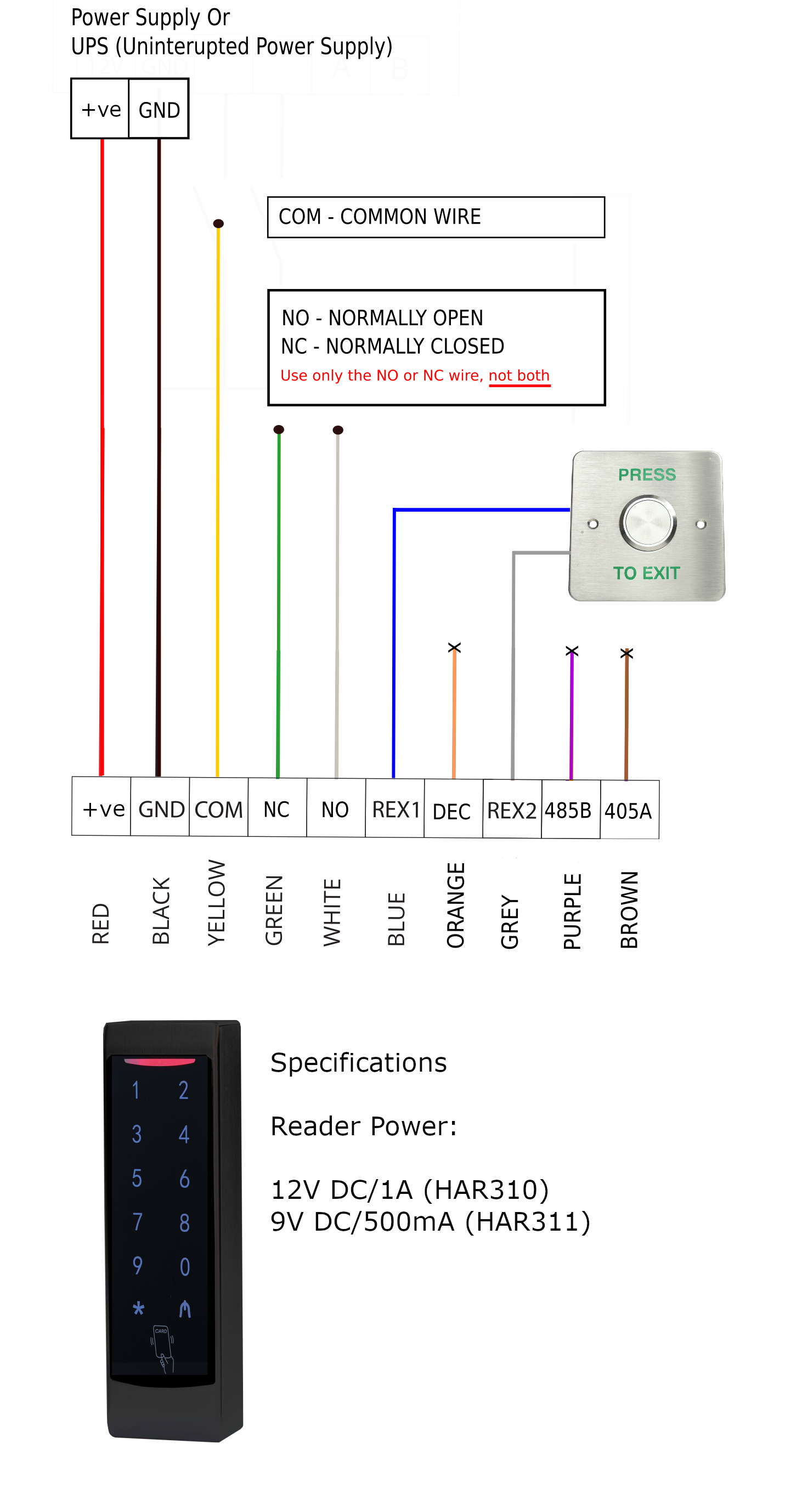

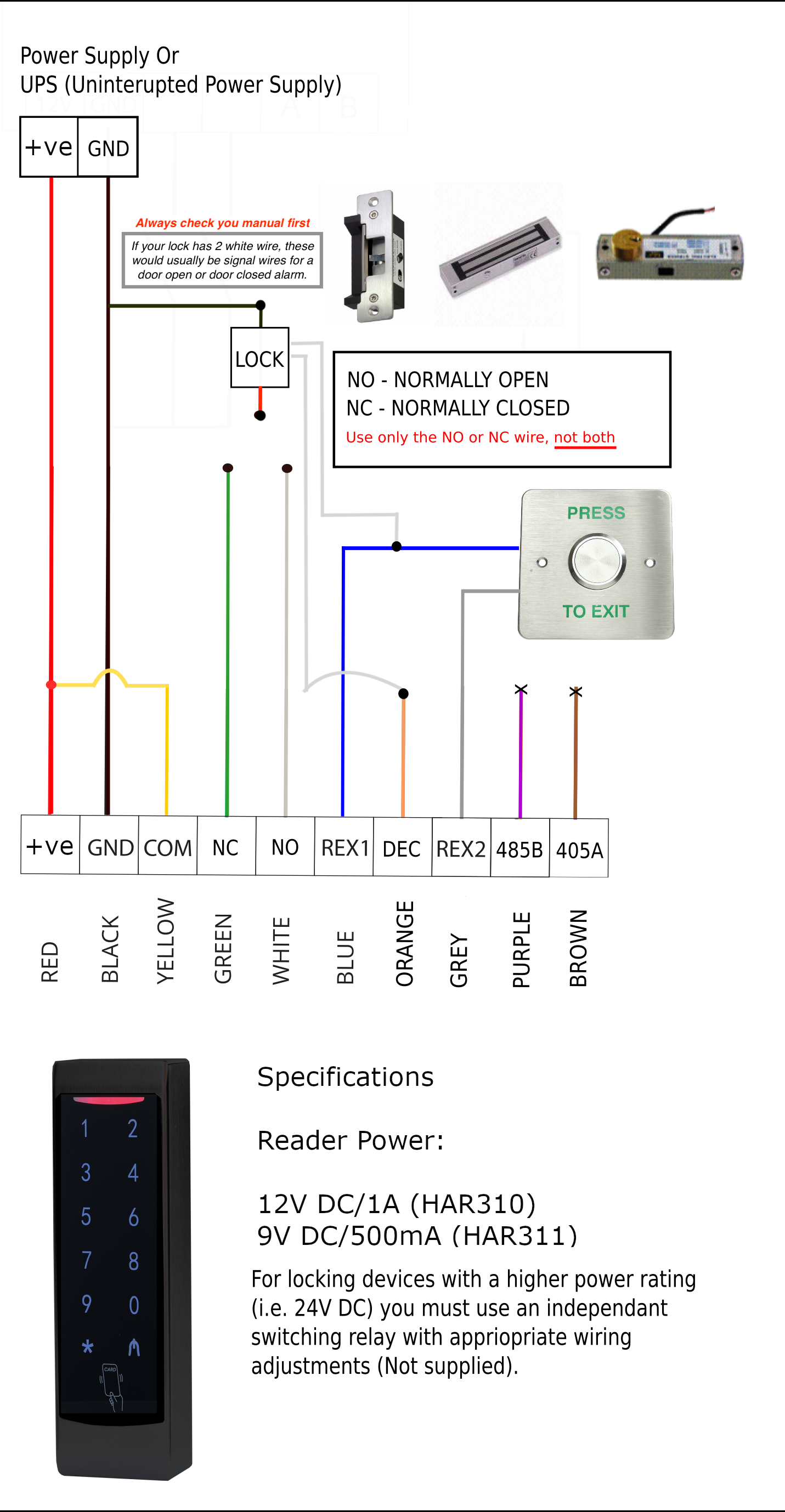

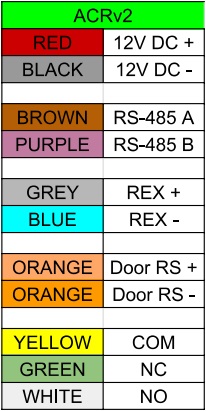

Wire Colors

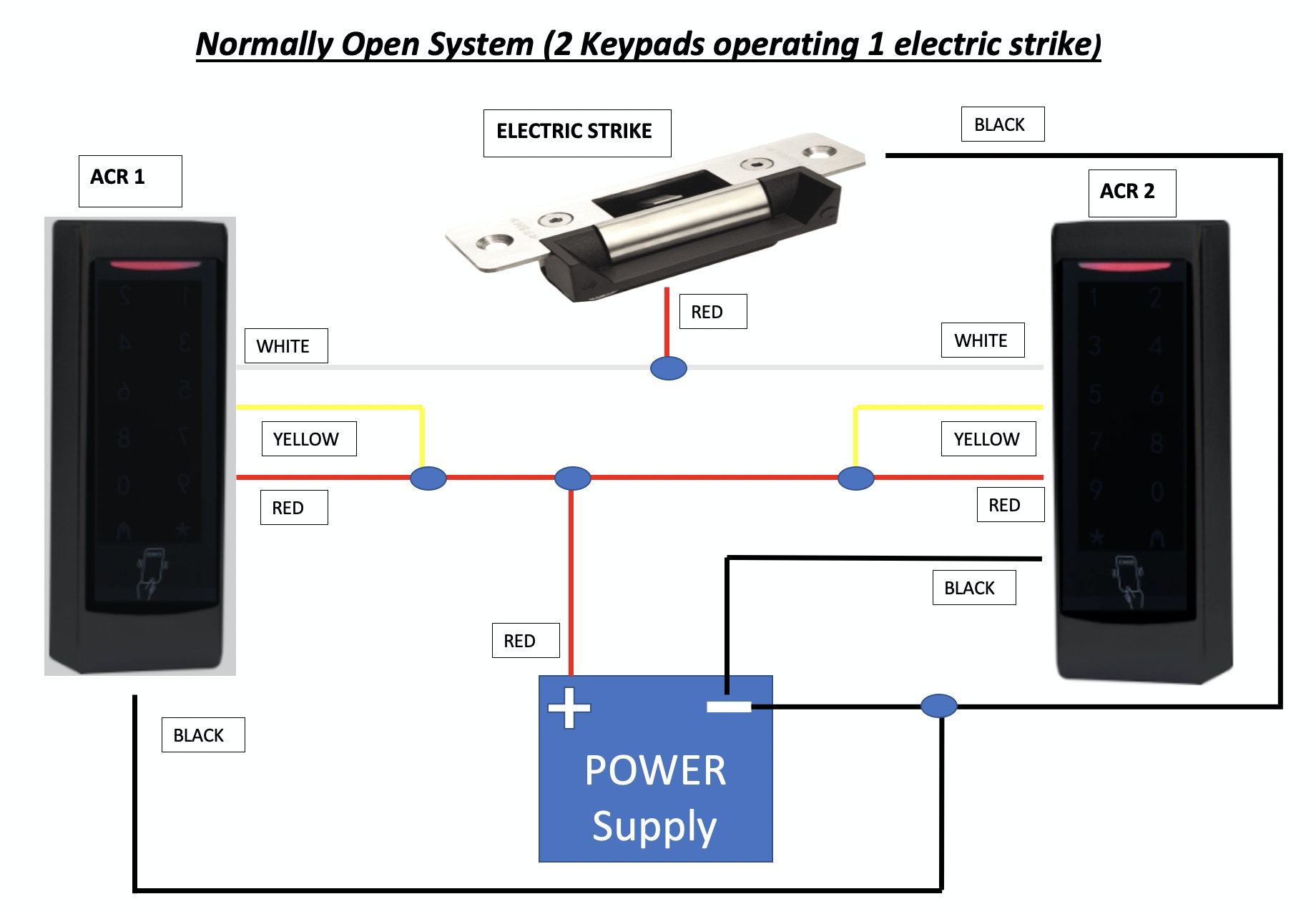

Example: Dual ACRs Normally Open with Electric Strike

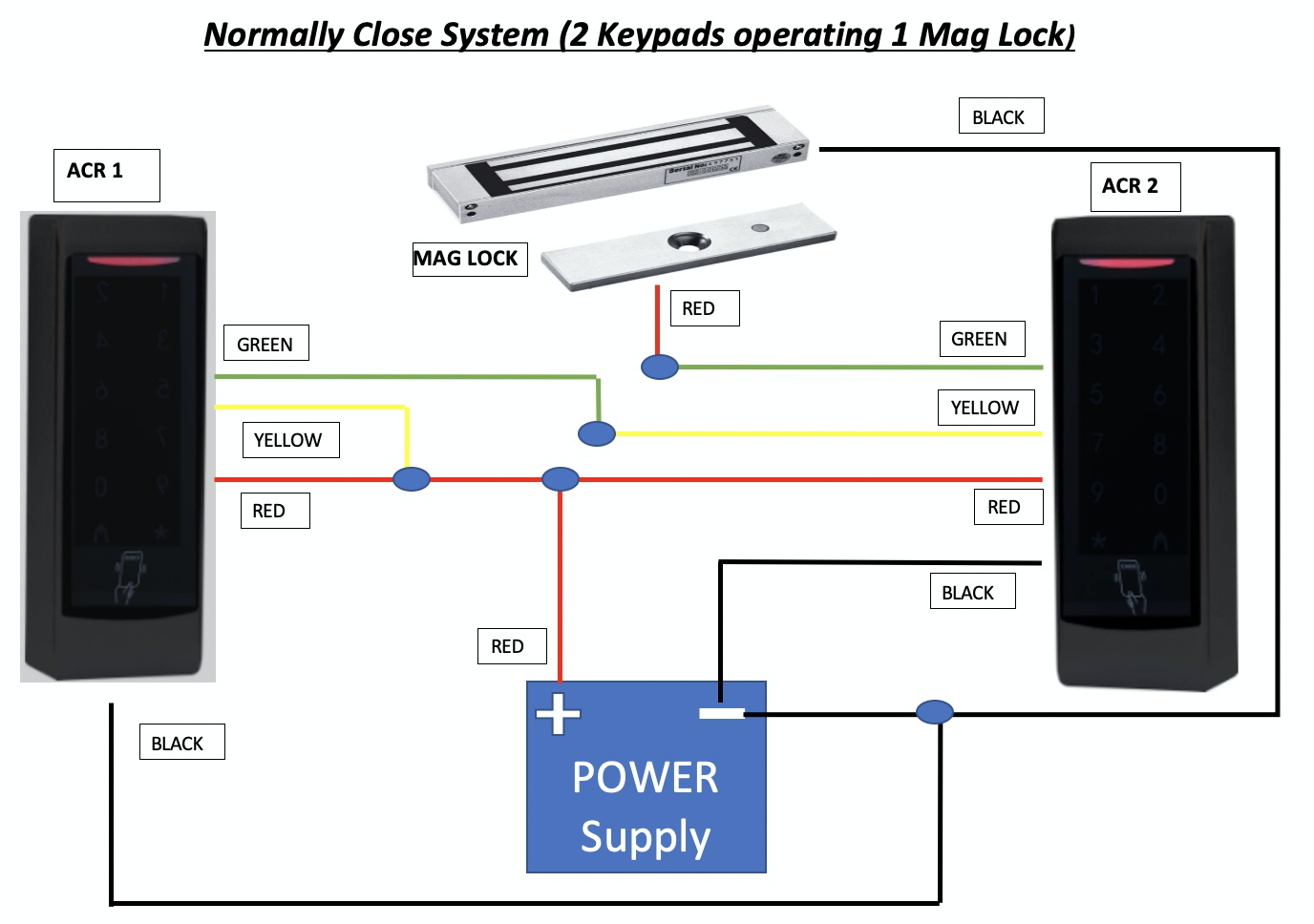

Example: Dual ACRs Normally Closed with Mag Lock

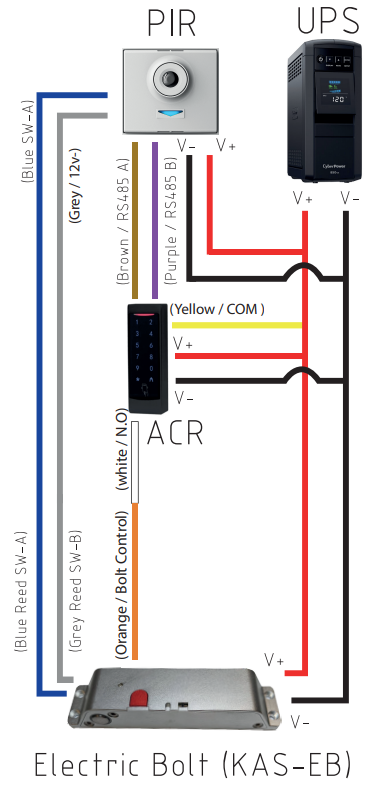

Example: ACR with PIR
